NET CAMERA Q6086-E NM/PTZ DOME 03188-301 AXIS

  • Produkta kods: 03188-301
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

4710.31

3892.82 € (bez PVN 21%)

0

Paredzamā pieejamība:13.05.2026.

Apraksts

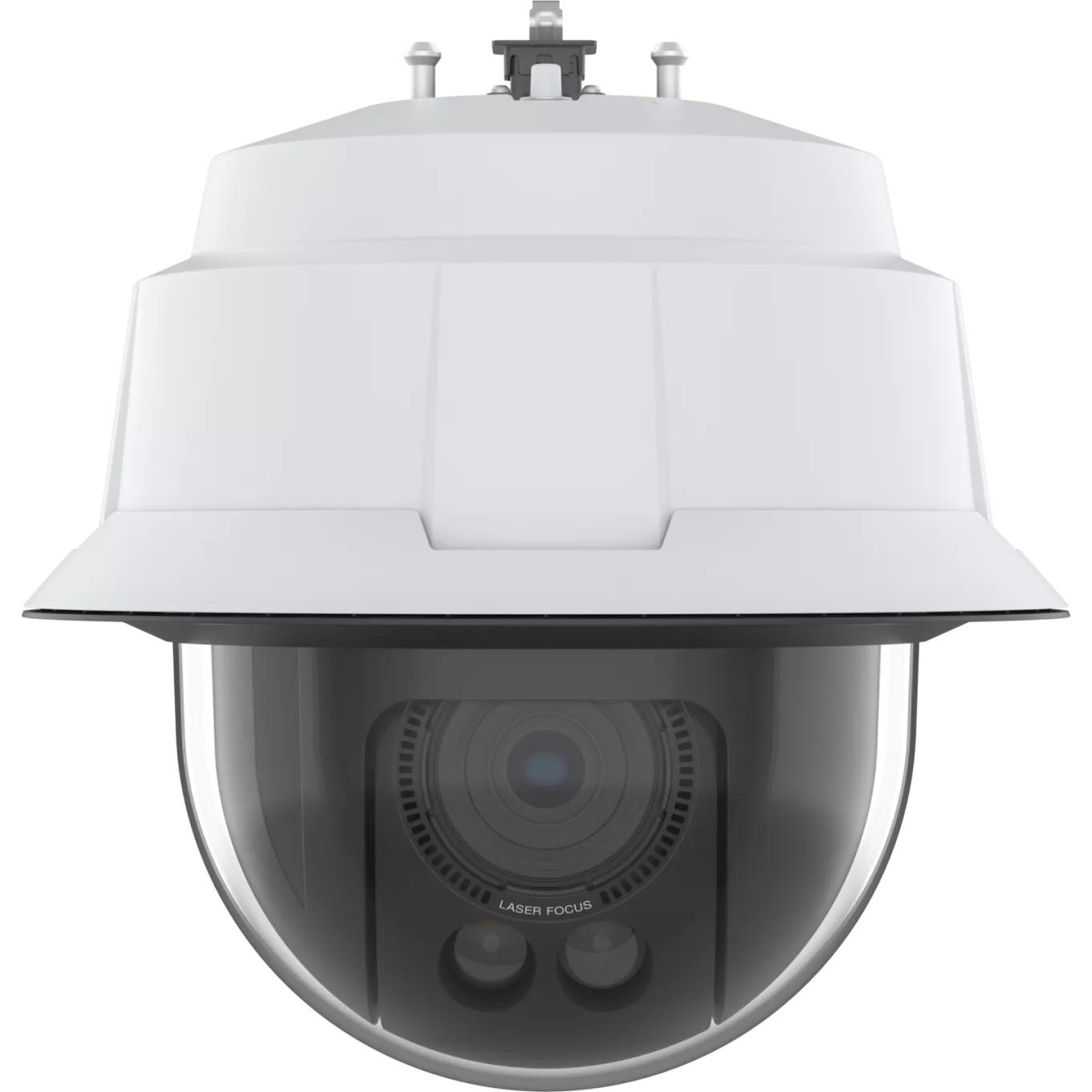

AXIS Q6086-E PTZ Camera

This extremely light-sensitive, AI-powered camera offers excellent image quality and laser focus for precise focus every time. It supports AV1 codec and provides accelerated performance to run impressive analytics applications on the edge.

Superior details and light sensitivity

Built on ARTPEC-9, this next-generation outdoor camera offers outstanding video quality in 4 MP at 60 fps. It features an extremely light-sensitive ½” sensor to deliver clear, bright images and better handling of shadows. With 34x optical zoom, you can easily follow fast-moving objects. Plus, laser focus ensures precise focus every time. Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in challenging light or near darkness. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements.

Powerful, next-generation analytics

Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It also delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled to detect, classify, track, and count humans, vehicles, and different types of vehicles. It also comes with AXIS Image Health Analytics. Autotracking 2 with click-and-track functionality enables active object tracking, and an orientation aid enables dynamic text overlays. What’s more, chameleon masking safeguards privacy.

Robust with strong cybersecurity

Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With IP66-, IK10-, NEMA 4x, and NEMA TS2-ratings, it’s both impact and weather-resistant. The camera’s operating temperature is -50 to 50 °C (-58 to 122 °F), while Arctic Temperature Control allows it to power up at as low as -40 °C (-40 °F). With shock detection, you'll be informed if the camera has been hit. And defog functionality ensures clear images despite fog or smog. Furthermore, it offers support for fiber connection, PoE, audio, four I/O ports, and smart restart with the included midspan.




Šim produktam ir 60 mēnešu garantija.

Parametri

SummaryAxis Q6086-E PTZ. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Form factor: Dome. Minimum illumination: 0.009 lx, Lens viewing angle, horizontal: 61.5°, Lens viewing angle, vertical: 37.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 32x, Digital zoom: 12x, Focal length range: 6.64 - 225.5 mm
Ražotājs datu lapahttps://www.axis.com/products/axis-q6086-e
Fog AizsardzībaYes
Formas faktorsDome
Korpusa materiālsAluminium/Polycarbonate (PC)
IK KodsIK10
Starptautiskās aizsardzības (SA) kods:IP66
Montāžas veidsCeiling
Produkts krāsaBlack/White
Aizsardzība funkcijasWear resistant
Automātiskā izsekošanaYes
SertifikācijaCE, FCC, ICES, KC, VCCI
Savienojamības tehnoloģijaWired
Dienas nakts režīmsYes
Infrasarkanais IR griešanas izslēgšana filtrsYes
Novietojums atbalstītsOutdoor
Iepriekš iestatīts punktiYes
PTZ vadībaYes
PTZ ModesPreset point
Apskate ierakstīšanaYes
TipsIP security camera
Plats dinamisks diapazons (WDR)Yes
Kamera panoramēšanas vadībaYes
Kamera pikseļa izmērs2.9 µm
Kameras aizvara ātrums1/49500 - 2 s
Kamera noliekšana vadībaYes
Objektīva skatīšanās leņķis horizontāls61.5 °
Objektīva skatīšanās leņķis vertikāls37.3 °
Minimālais apgaismojums0.009 lx
Pan diapazons0 - 360 °
Pan Ātrums500 °/sec
Noliekšana leņķis diapazons-90 - 0 °
Noliekšana Ātrums500 °/sec
Numurs Of sensori1
Optiskais sensors izmērs1/2 "
Progressive skenēšanaYes
Sensors tipsCMOS
Automātisks FokusēšanaYes
Closest Focusing attālums3 m
Detect attālums tele3118.4 m
Detect attālums plats92.6 m
Digitālā tālummaiņa12 x
Fokusa garums diapazons6.64 - 225.5 mm
Identify attālums tele311.8 m
Identify attālums plats9.3 m
Maksimālais aperture numurs5.1
Minimālais aperture numurs1.7
Numurs Of objektīvi1
Observe attālums tele1237.5 m
Observe attālums plats36.7 m
Optiskais tālummaiņa32 x
Recognize attālums tele623.6 m
Recognize attālums plats18.5 m
Tālummaiņa CapabilityYes
Bitu ātrums vadībaConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Kadru zīmēšanas ātrums60 fps
Attēla kvalitāte regulēšanaBrightness/Contrast/Saturation/Sharpness
Maksimālais izšķirtspēja2688 x 1512 pixels
Trokšņa samazināšanaYes
Trokšņa samazināšana tehnoloģija2D noise reduction,3D noise reduction
Atbalstīts grafika resolutions2688 x 1512/640 x 360
Teksts Caption OverlayYes
Kopējais Megapixels4 MP
Video saspiešana formātiH.262/H.264/H.265/M-JPEG/MPEG4
Video straumēšanaYes
Ethernet Saskarne TipsFast Ethernet/Gigabit Ethernet
ETHERNET/LANYes
Tīklošana standartiIEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3bt
Straumēšana metodeMulticast
Atbalstīts tīkls protokoliIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
Iebūvēts karšu lasītājsYes
Saderīgas atmiņas kartesSD/SDHC/SDXC
Zibspuldze atmiņa8192 MB
RAM ietilpība4096 MB
Ethernet LAN (RJ-45) pieslēgvietas1
Brīdinājums paziņojums tipsE-mail
HTTPS šifrēšanaYes
Cilvēka And transportlīdzekļa mērķi klasifikācijaYes
Inteliģents Video Surveillance Ivs Sistēma FunkcijasAbandoned object/Crossing line
Parole aizsardzībaYes
Pikseļa CounterYes
Drošība AlgorithmsHTTPS/TLS
Barošanas consumption (max)51 W
Barošanas consumption (typical)10 W
Barošanas avots tipsPoE
Darbības relatīvs mitrums (H-H)10 - 100 %
Darbības temperatūra (T-T)-50 - 55 °C
Glabāšana relatīvs mitrums (H-H)5 - 95 %
Glabāšana temperatūra (T-T)-40 - 65 °C
Dziļums264 mm
Augstums279 mm
Svars4100 g
Platums264 mm
Atbilstības sertifikātiREACH/RoHS/Trade Agreements Act (TAA)
Numurs of cameras1
NesaturCFR/PVC/BFR
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.03 cubm
Vienība Calculated svars4.5 kg
