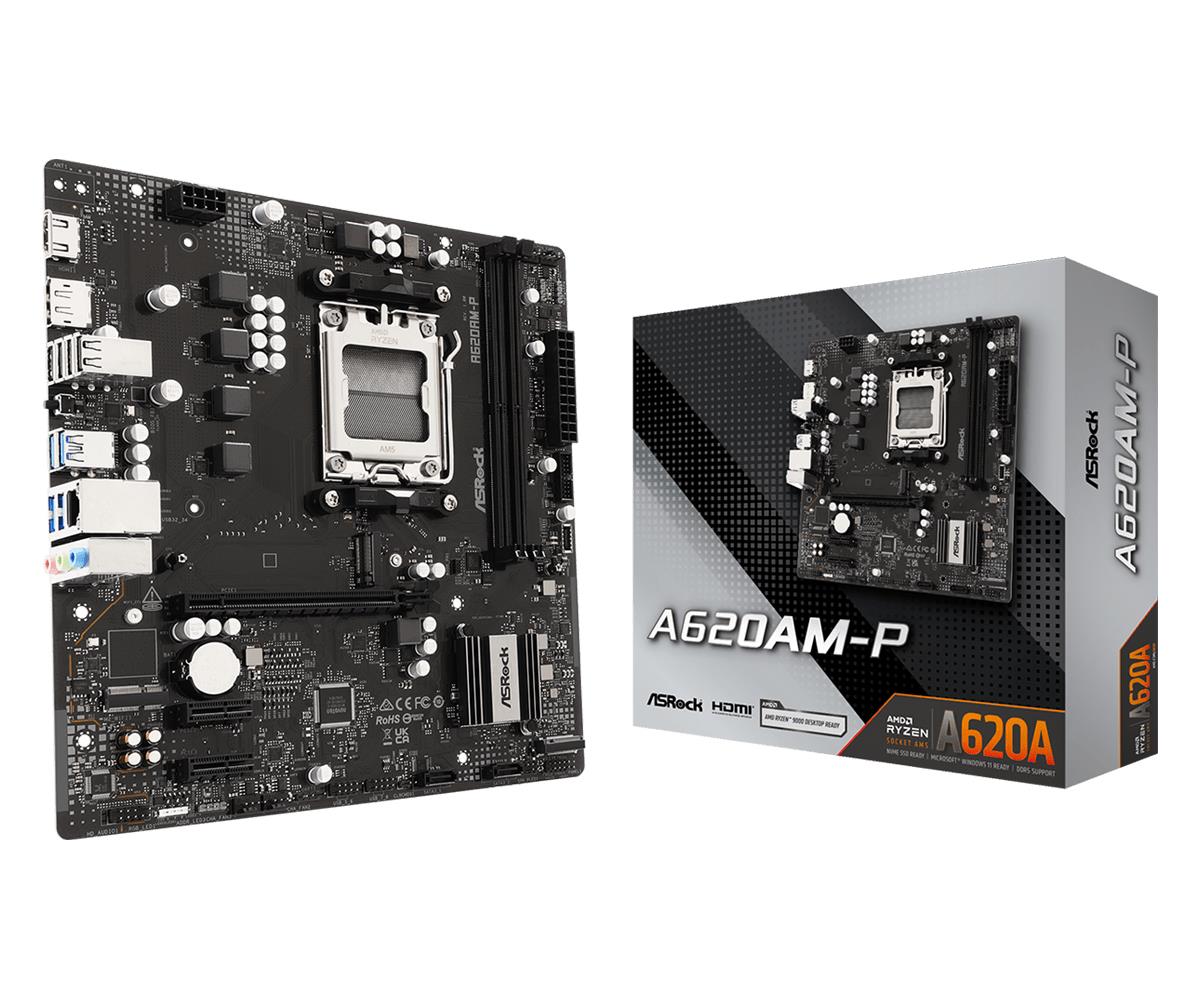

MB AMD A620A SAM5 MATX/A620AM-P ASROCK

  • Produkta kods: A620AM-P
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

90.27

74.78 € (bez PVN 21%)

0

Paredzamā pieejamība:26.08.2026.

Apraksts

Dr. MOS
Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.

Šim produktam ir 36 mēnešu garantija.

Parametri

KopsavilkumsAsrock A620AM-P. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, M.2. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Ražotāja datu lapahttps://www.asrock.com/MB/AMD/A620AM-P/index.asp#Specification
Audio mikroshēmaRealtek ALC897
Audio izvades kanāli7.1 channels
KomponentsPC
Mātesplates mikroshēmu komplektsAMD A620A
Mātesplates mikroshēmu komplekta saimeAMD
Mātesplates formas faktorsmicro ATX
Atbalstītās Windows operētājsistēmasWindows 10 x64/Windows 11 x64
Saderīgo procesoru sērijaAMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Procesora ražotājsAMD
Procesora ligzdaSocket AM5
ECC saderībaNon-ECC
Maksimālā iekšējā atmiņa128 GB
Atmiņas kanāliDual-channel
Atmiņas slotu tipsDIMM
Atmiņas slotu skaits2
Atbalstītie atmiņas tipiDDR5-SDRAM
Atbalstītās glabāšanas disku saskarnesSATA III,M.2
ATX barošanas savienotājs (24 kontaktu)Yes
CPU ventilatora savienotājsYes
EPS barošanas savienotājs (8 kontaktu)Yes
Priekšējā paneļa audio savienotājsYes
Šasijas ventilatoru savienotāju skaits3
CPU ventilatora savienotāju skaits1
EPS barošanas savienotāju skaits (8 kontaktu)1
SATA III savienotāju skaits2
RGB LED kontaktrindaYes
USB 2.0 savienotāji2
USB 3.2 Gen 1 (3.1 Gen 1) savienotāji1
USB 3.2 Gen 2 (3.1 Gen 2) savienotāji1
DisplayPort versija1.4
DisplayPort pieslēgvietu skaits1
Ethernet LAN (RJ-45) pieslēgvietas1
HDMI portu skaits1
USB 2.0 portu skaits4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A portu skaits4
Ethernet saskarnes tipsGigabit Ethernet
Ethernet/LANYes
LAN kontrollerisRealtek RTL8111H
Wi-FiNo
M.2 M slotu skaits1
PCI Express x1 (Gen 3.x) sloti2
PCI Express x16 (Gen 4.x) sloti1
BIOS atmiņas izmērs256 Mbit
BIOS tipsUEFI AMI
Dziļums229 mm
Platums244 mm
Komplektā iekļauti kabeļiSATA
Skrūves iekļautasYes
Vienības aprēķinātais tilpums0.005579 cubm
Vienības aprēķinātais svars1.2 kg
