MONITOR ACC DESK MOUNT 17-32"/DS70-810BL1 NEOMOUNTS

  • Produkta kods: DS70-810BL1
  • EAN: 8717371449216
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

142.09

117.43 € (bez PVN 21%)

3

24.04.

142.24

117.55 € (bez PVN 21%)

7

01.05.

Apraksts

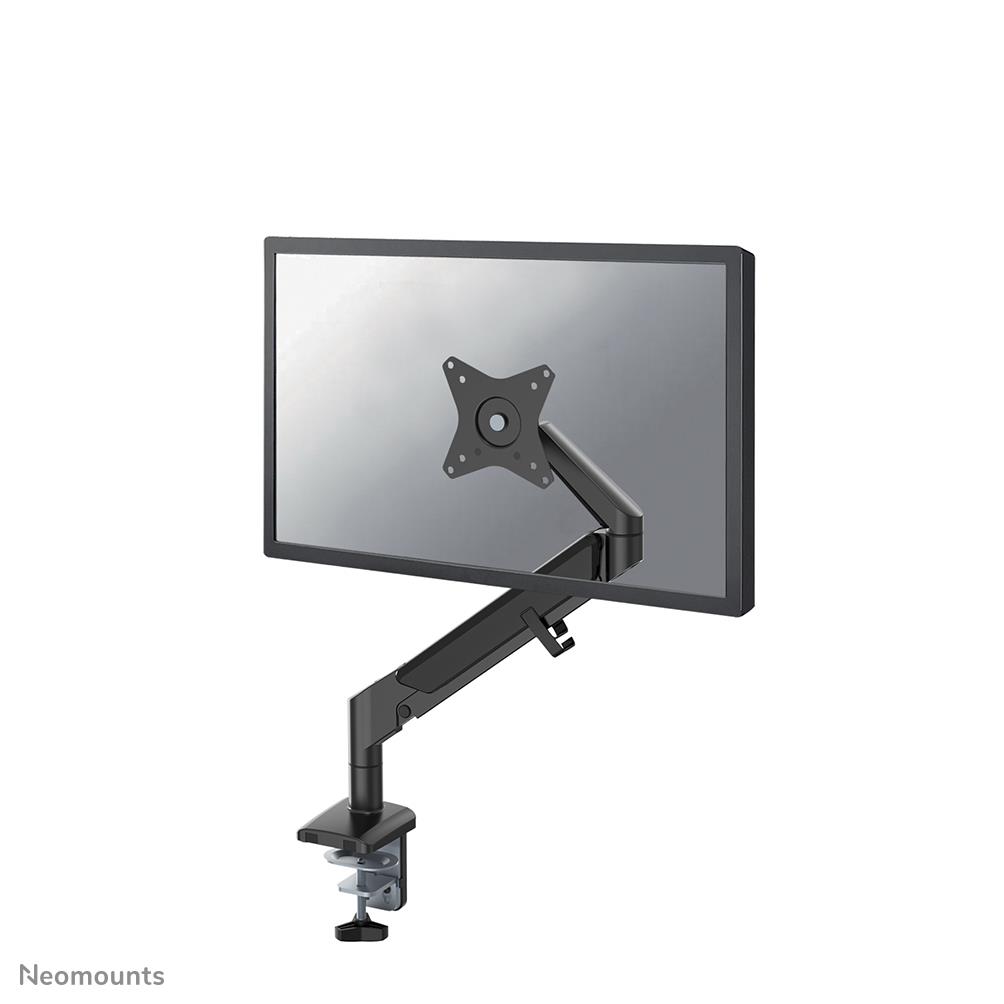

The Neomounts DS70-810BL1 is a full motion desk mount for one flat screen up to 32" with a maximum weight capacity of 9 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL1 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it\'s placed close to a wall or separation panel without making contact with the wall. The smart cable management clips ensure orderly routing of the cables.

Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL1 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.

Šim produktam ir 5 mēnešu garantija.

Parametri

SummaryNeomounts DS70-810BL1 Monitor arm 17-32" - gas spring - space saving - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black
Ražotājs datu lapahttps://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-810BL1
Vienība kastes augstums0.23
Vienība kastes garums0.41
Vienība kastes platums0.12
Galda biezums Max85 mm
Galda biezums Min10 mm
Maksimālais ekrāna izmērs32 "
Maksimālais Vesa stiprinājums100 x 100 mm
Maksimālais svars ietilpība9 kg
product_attr.MAXIMUM_WEIGHT_CAPACITY_PER_CURVEDULTRAWIDE_DISPLAY9 kg
Maksimālais svars ietilpība uz displejs9 kg
Minimālais ekrāna izmērs17 "
Minimālais Vesa stiprinājums75 x 75 mm
MontāžaClamp/Grommet
Montāžas veidsDesk
Numurs Of displeji atbalstīts1
Paneļa montāžas interfeiss100 x 100/75 x 75 mm
Regulējams dziļumsYes
rotācijas leņķis360 °
Kabeļu pārvaldībaYes
Dziļums regulēšana diapazons0 - 490 mm
Glavas atbalsta un plecu jostu pilnkomplektaYes
Augstums regulēšana diapazons265 - 550 mm
Augstums regulēšana tipsGas spring
Šarnīra leņķis-180 - 180 °
RotējošaisYes
Grozāms leņķis diapazons-90 - 90 °
GrozāmsYes
Noliekšana regulēšanaYes
Noliekšana leņķis diapazons-45 - 45 °
Korpusa materiālsSteel
OrientācijaLandscape/Portrait
Produkts krāsaBlack
Dziļums555 mm
Augstums615 mm
Svars3000 g
Platums117 mm
Iepakojums dziļums117 mm
Iepakojums augstums400 mm
Iepakojums tīkla svars3600 g
Iepakojums svars3600 g
Iepakojums platums222 mm
Daudzums uz pakotne1 pc(s)
Minimālais svars1 kg
Izcelsmes valstsChina
Harmonizētās sistēmas (HS) kods7326909890
Galvenais (outer) korpuss bruto svars22300 g
Galvenais (outer) korpuss augstums370 mm
Galvenais (outer) korpuss garums415 mm
Galvenais ārējais korpuss tīkla svars18000 g
Galvenais (outer) korpuss platums465 mm
Produkti uz galvenais (outer) korpuss6 pc(s)
Produkti uz palete (EU)72 pc(s)
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.01132 cubm
Vienība Calculated svars3.6 kg
