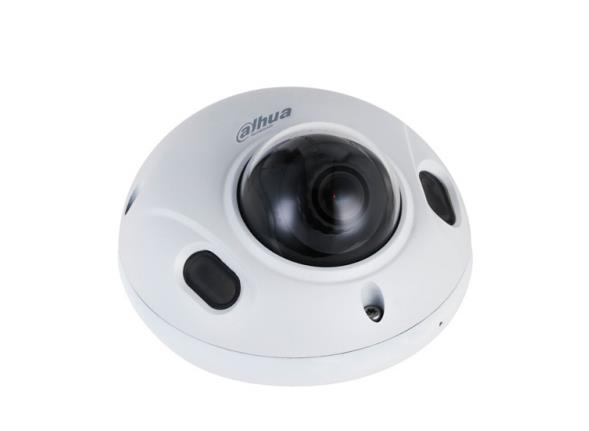

NET CAMERA 5MP IR DOME/HDBW3541F-AS-0280B-S2 DAHUA

  • Produkta kods: IPC-HDBW3541F-AS-0280B-S2
  • EAN: 6923172542816
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

265.24

219.38 € (bez PVN 21%)

14

27.07.

Apraksts

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua\'s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Series Overview
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent
functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.

SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals,
to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.

AI SSA
Dahua AI Scene Self-adaptation (AI SSA) adopts deep learning algorithms to detect environmental conditions, such as rain, fog, backlight, low light and flicker, to adjust the parameters of the image to
suit the conditions, ensuring that clear images are always produced.

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion) are largely reduced.

Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted
storage. These technologies improve the camera\'s defense against external cyber threats and prevent malicious programs from comprising the device.

  • 5 MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images
  • Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, max. IR distance: 30 m
  • ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection

Šim produktam ir 36 mēnešu garantija.

Parametri

KopsavilkumsDahua Technology WizSense DH-IPC-HDBW3541F-AS-S2. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.005 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 111°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Signal-to-Noise Ratio (SNR) (panoramic camera): 56 dB
Ražotāja datu lapahttps://www.dahuasecurity.com
Vienības kastes augstums0.12
Vienības kastes garums0.14
Vienības kastes platums0.14
Aizsardzība pret aizsvīšanuYes
Formas faktorsDome
IK kodsIK10
Starptautiskās aizsardzības (IP) kodsIP67
Montāžas veidsCeiling/wall
Produkta krāsaWhite
SertifikācijaCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Savienojamības tehnoloģijaWired
Dinamisks diapazons120 dB
Novietojums atbalstītsIndoor & outdoor
TipsIP security camera
Plašs dinamiskais diapazons (WDR)Yes
Aizvara ātruma regulēšanaAuto/Manual
Rotācijas leņķis355 °
Kameras panoramēšanas vadībaYes
Kameras aizvara ātrums1/3 - 1/100000 s
Kameras aizvara tipsElectronic
Kameras noliekšanas vadībaYes
Objektīva skatīšanās leņķis (diagonāli)132 °
Objektīva skatīšanās leņķis (horizontāli)111 °
Objektīva skatīšanās leņķis (vertikāli)58 °
Minimālais apgaismojums0.005 lx
Privātuma maskēšanas zonu skaits4
Panoramēšanas diapazons0 - 355 °
Noliekšanas leņķa diapazons20 - 70 °
Baltās krāsas balanssAuto/Manual/Natural/Outdoor/Regional custom/Street lamp
Sensoru skaits1
Optiskā sensora izmērs1/2.7 "
Sensora tipsCMOS
Signāla un trokšņa attiecība (SNR, panorāmas kamerai)56 dB
Noteikšanas attālums (platleņķa)63.6 m
Fokusa garuma diapazons2.8 - 6 mm
Identifikācijas attālums (plats leņķis)6.4 m
Maksimālais diafragmas skaitlis1.4
Objektīvu skaits1
Novērošanas attālums (platleņķa)25.4 m
Atpazīšanas attālums (platleņķa)12.7 m
LED tipsIR
Nakts redzeYes
Apgaismojuma LED skaits2
Muguras gaismas kompensācija (BLC)Yes
Bitu ātrumsH.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbps
Bitu ātruma vadībaConstant Bit Rate (CBR)/Variable Bit Rate (VBR),Variable Bit Rate (VBR)
Kadru nomaiņas ātrums30 fps
Pastiprinājuma vadības tipsAuto
Izcēluma kompensācija (HLC)Yes
Maksimālā izšķirtspēja2960 x 1668 pixels
Trokšņa samazināšanaYes
Trokšņa samazināšanas tehnoloģija3D noise reduction
Konfidencialitātes maskēšanaYes
Interešu reģiona (ROI) kodēšanaYes
Viedais IRYes
Kopējais megapikseļu skaits5 MP
Atbalstītie video formātiH.264/H.264B/H.265/M-JPEG
Atbalstītie audio formātiDSS
Audio ievades kanāli1.0 channels
Audio izvades kanāli1.0 channels
Balss kodekiG.711a/G.711Mu/G.723/G.726/PCM
BluetoothNo
Lietotāju skaits20 user(s)
Pakalpojuma kvalitātes (QoS) atbalstsYes
Straumēšanas metodeMulticast
Atbalstītie tīkla protokoliIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Wi-FiNo
Iebūvēts HDDNo
Iebūvēts karšu lasītājsYes
Saderīgas atmiņas kartesMicroSD (TransFlash)
Maksimālais atmiņas kartes izmērs256 GB
RAM ietilpība512 MB
ROM ietilpība128 MB
Uzvedības analīzeIntrusion detection
Tīmekļa pārlūkprogrammaYes
Tīmekļa pārvaldībaYes
Līdzstrāvas izejas spriegums12
Enerģijas patēriņš (PoE)4.6 W
Barošanas avota tipsDC,PoE
Darbības temperatūra (T-T)-40 - 60 °C
Glabāšanas temperatūra (T-T)-40 - 60 °C
Atbalstītās mobilās operētājsistēmasAndroid/iOS
Diametrs64.8 mm
Augstums111 mm
Svars423 g
Iepakojuma svars530 g
Kameru skaits1
ModelisIPC-HDBW3541F-AS-0280B-S2
Vienības paletē0
Vienības piegādes kastē20
Vienības aprēķinātais tilpums0.002853 cubm
Vienības aprēķinātais svars0.615 kg
