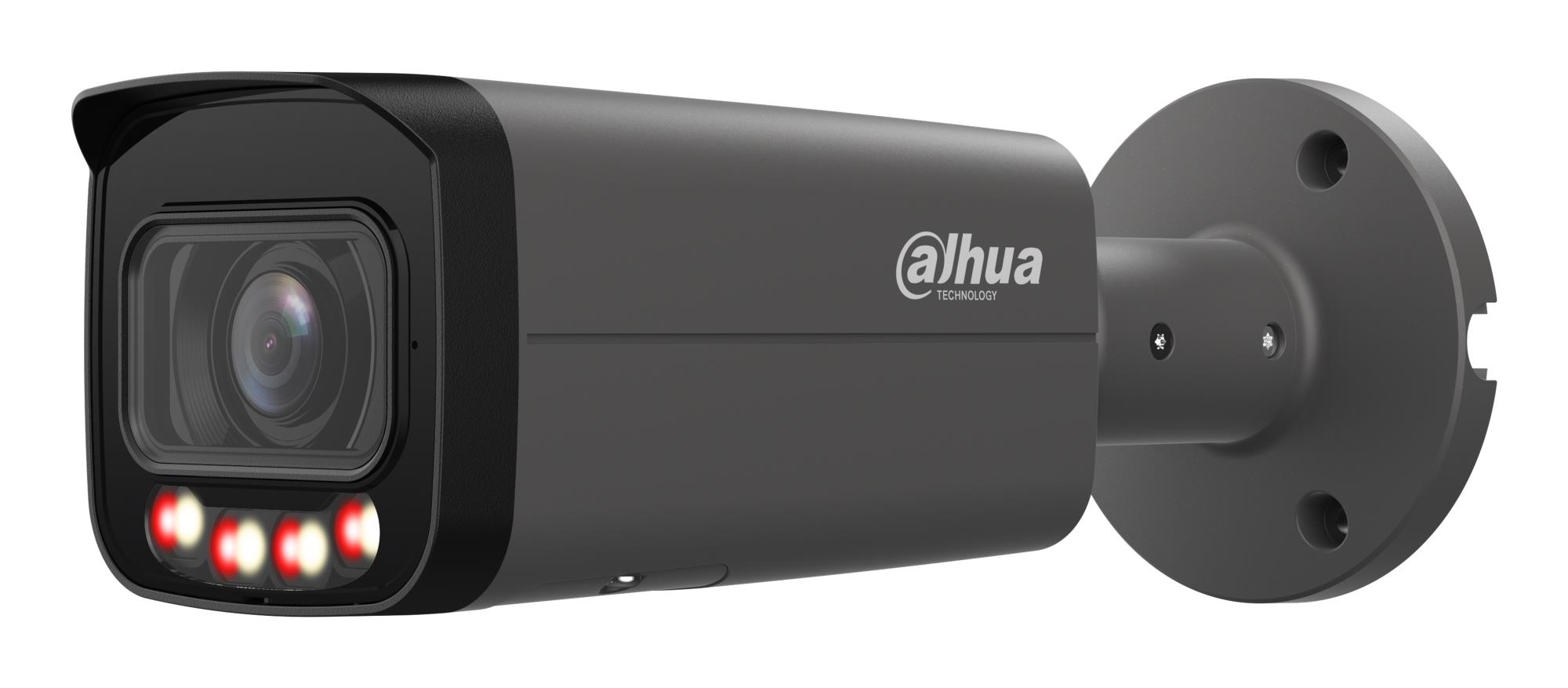

NET CAMERA 12MP BULLET/HFW21249T-AS-IL-0280B-B DAHUA

  • Produkta kods: IPC-HFW21249T-AS-IL-0280B-B
  • EAN: 6939554951367
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

290.81

240.34 € (bez PVN 21%)

5

09.06.

Apraksts

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

AI-ISP
With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets.

Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently

SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

  • 12-MP 1/2.5" CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 12 MP (4480 × 2512)@15 fps, and supports 5 MP (3072 × 1728)@25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
  • Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
  • Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 in, 1 out(Only - AS supports); audio: 1 in, 1 out(Only - AS supports); supports max. 256 G Micro SD card; built in Mic.
  • 12 VDC/PoE power supply, easy for installation.
  • IP67, IK10 (optional) protection.
  • SMD Plus

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryDahua Technology WizSense IPC-HFW21249T-AS-IL 12MP Smart Dual Light Fixed-focal Bullet Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 112°, Lens viewing angle, vertical: 58°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Signal-to-Noise Ratio (SNR) (panoramic camera): 56 dB
Ražotājs datu lapahttps://www.dahuasecurity.com/mena/products/All-Products/Network-Cameras/WizSense-2-Series/Smart-Dual-Light/IPC-HFW21249T-AS-IL=S2
Vienība kastes augstums0.12
Vienība kastes garums0.285
Vienība kastes platums0.12
Formas faktorsBullet
Korpusa materiālsMetal
IK KodsIK10
Starptautiskās aizsardzības (SA) kods:IP67
Montāžas veidsCeiling/Wall/Pole
Produkts krāsaBlack
Trauksmes ievades izejasYes
Iebūvēts In gaismasYes
SertifikācijaCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Savienojamības tehnoloģijaWired
Dienas nakts režīmsYes
Novietojums atbalstītsIndoor & outdoor
TipsIP security camera
Plats dinamisks diapazons (WDR)Yes
rotācijas leņķis360 °
Kameras aizvara ātrums1/3 - 1/100000 s
Kamera aizvars tipsElectronic/Mechanical
Objektīva skatīšanās leņķis diagonāle136 °
Objektīva skatīšanās leņķis horizontāls112 °
Objektīva skatīšanās leņķis vertikāls58 °
Minimālais apgaismojums0 lx
Numurs Of konfidencialitātes maskēšana Areas4
Pan diapazons0 - 360 °
Noliekšana leņķis diapazons0 - 90 °
Balts BalanceAuto/Manual/Natural/Outdoor/Regional custom/Street lamp
Optiskais sensors izmērs1/2.5 "
Progressive skenēšanaYes
Sensors tipsCMOS
Signāls To trokšņa attiecība SNR panorāmas kamera56 dB
Closest Focusing attālums3.5 m
Detect attālums98.9 m
Fiksēts fokusa garums2.8 mm
Fiksēts fokussYes
Identify attālums9.9 m
Maksimālais aperture numurs1.6
Numurs Of objektīvi1
Observe attālums39.6 m
Recognize attālums19.8 m
LED TipsIR/White
Nakts redzeYes
Nakts redze attālums30 m
Numurs Of apgaismojums Leds4
Muguras gaismas kompensācija BlcYes
Bitu ātrumsH.264: 32 kbps-8192 kbps; H.265: 12 kbps-8192 kbps
Bitu ātrums vadībaConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digitāls plats dinamisks diapazons DwdrYes
Pastiprinājums vadība tipsAuto/Manual
Izcēlums kompensācija HlcYes
Maksimālais izšķirtspēja4480 x 2512 pixels
Trokšņa samazināšanaYes
Trokšņa samazināšana tehnoloģija3D noise reduction
Konfidencialitātes maskēšanaYes
Reģions Of Interest Roi kodēšanaYes
Atbalstīts grafika resolutions1280 x 960/2304 x 1296/2688 x 1520/2880 x 1620/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/704 x 480/704 x 576
Atbalstīts video režīmi1080p/1296p/1520p/1536p/1620p/2160p/240p/2880p/480p/576p/720p/960p
Kopējais Megapixels12 MP
Video saspiešana formātiH.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Video straumēšanaYes
Audio ievades kanāli1.0 channels
Audio izvades kanāli1.0 channels
Iebūvētais mikrofonsYes
Numurs of mikrofoni1
Balss kodekiG.711a/G.711Mu/G.726/PCM
BluetoothNo
Klienta sadarbspējaONVIF (Profile S & Profile G & Profile T); CGI
Ethernet Saskarne TipsFast Ethernet
ETHERNET/LANYes
Tīklošana standartiIEEE 802.3af
Numurs Of lietotāji20 user(s)
Atbalstīts tīkls protokoliIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
Wi-FiNo
Iebūvēts In HDDNo
Iebūvēts karšu lasītājsYes
Saderīgas atmiņas kartesMicroSD (TransFlash)
Maksimālais atmiņa kartes izmērs256 GB
RAM ietilpība512 MB
ROM ietilpība128 MB
Ethernet LAN (RJ-45) pieslēgvietas1
Inteliģents Video Surveillance Ivs Sistēma FunkcijasIntrusion/Tripwire
Video kustības noteikšanaYes
Līdzstrāva Izeja Spriegums12
Barošanas consumption (max)10.1 W
Barošanas Consumption barošanas pāri Ethernet POE3.7 W
Barošanas consumption (typical)3.1 W
Barošanas avots tipsDC,PoE
Darbības relatīvs mitrums (H-H)0 - 95 %
Darbības temperatūra (T-T)-40 - 60 °C
Glabāšana relatīvs mitrums (H-H)0 - 95 %
Glabāšana temperatūra (T-T)-40 - 60 °C
Mobilais darbības sistēmas atbalstītsAndroid/iOS
Augstums90.7 mm
Garums238.5 mm
Svars720 g
Platums90.7 mm
Iepakojums svars970 g
Numurs of cameras1
Audio ievadeRCA
Audio izvadeRCA
Pārlūkprogramma atbalstītsIE; Chrome; Firefox
Datu pārsūtīšana ātrums100 Mbit/s
IrisYes
Objektīva stiprinājums interfeissM12
ModelisHFW21249T-AS-IL-0280B-B
Vienības uz palete0
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.004104 cubm
Vienība Calculated svars0.98 kg
