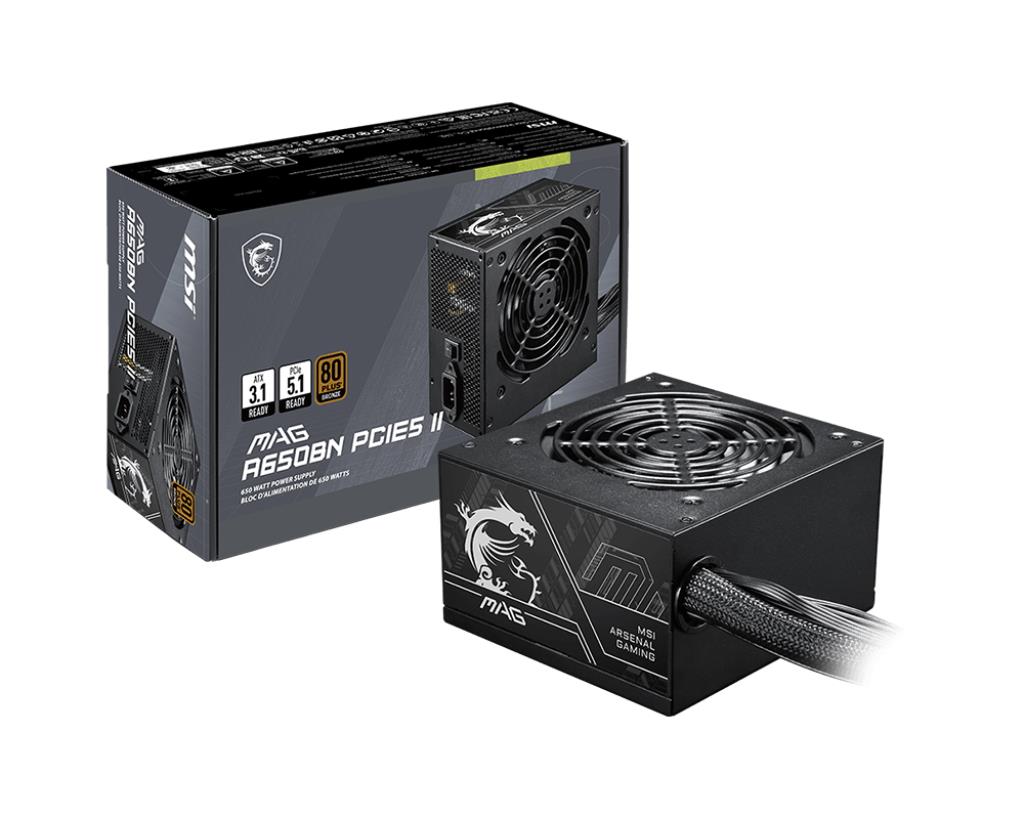

Power Supply|MSI|ATX|PC|100 - 240 V|650 W|MAGA650BNPCIE5II

  • Produkta kods: MAG A650BN PCIE5 II
  • EAN: 4711377364287
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

80.50

66.70 € (bez PVN 21%)

0

Paredzamā pieejamība:29.07.2026.

Apraksts

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.

ATX 3.1 READY
It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.

Dual-color 12V-2x6 cable
The 12V-2x6 cable’s connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly.

Offer the CPU sufficient power
This power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs.

POWER AT YOUR SIDE
The power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.

SET FREE FOR THE +12V POWER OUTPUT
The latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.

Alloy Copper Connector Terminals
The cable connectors are made of copper alloy terminals so that thepower supply will be safer when there is a higher surge in current.

PROTECTION MECHANISMS
operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.

connectors
This non-modular power supply equipped with black flat cables, making cable management.

  • Dual-color 12V-2x6 Cable
  • ATX 3.1 Ready
  • PCIe 5.1 Ready (300W)
  • 80 PLUS Bronze
  • 120mm Fan
  • DC to DC power Design
  • Active PFC Design
  • Industrial level protection with OVP, OCP, SCP, OPP, UVP

Šim produktam ir 24 mēnešu garantija.

Parametri

KopsavilkumsMSI MAG A650BN PCIE5 II. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Ražotāja datu lapahttps://www.msi.com/Power-Supply/MAG-A650BN-PCIE5-II
Vienības kastes augstums0.115
Vienības kastes garums0.293
Vienības kastes platums0.195
Maiņstrāvas ieejas frekvence50/60 Hz
Maiņstrāvas ieejas spriegums100 - 240 V
Kombinētā jauda (+12V)648 W
Kombinētā jauda (+3,3 V)120 W
Kombinētā jauda (+5V)120 W
Kombinētā jauda (+5Vsb)15 W
Efektivitāte85 %
Maksimālā izejas strāva (+12V)54 A
Maksimālā izejas strāva (+3.3V)20 A
Maksimālā izejas strāva (+5V)0.3 A
Maksimālā izejas strāva (+5VSB)3 A
Jaudas koeficienta korekcijas (PFC) tipsActive
Barošanas aizsardzības funkcijasOver current/Over power/Over voltage/Short circuit/Under voltage
Kopējā jauda650 W
ATX barošanas savienotājs (20+4 kontaktu)Yes
ATX barošanas savienotājs (24 kontaktu)No
Kabeļu veidsNon-Modular
Centrālā procesora barošanas savienotājs (4+4 kontakti)Yes
EPS barošanas savienotājs (4+4 kontaktu)Yes
EPS barošanas savienotājs (8 kontaktu)Yes
Diskešu diskdziņa savienotājsNo
Mātesplates barošanas kabeļa garums550 mm
Mātesplates barošanas savienotājs20+4 pin ATX
SATA barošanas savienotāju skaits3
PCI Express barošanas savienotāji (6+2 pin)2
Peripheral (Molex) barošanas savienotāji (4 pin)2
80 Plus sertifikācija80 PLUS Bronze
Barošanas bloka (PSU) formas faktorsATX
MērķisPC
Dzesēšanas tipsActive
Ventilatora diametrs120 mm
Ventilatoru skaits1 fan(s)
Ieslēgšanas/izslēgšanas slēdzisYes
Produkta krāsaBlack
Dziļums140 mm
Augstums86 mm
Platums150 mm
Modeļa nosaukumsMAG A650BN PCIE5 II
Vienības paletē0
Vienības piegādes kastē4
Vienības aprēķinātais tilpums0.008323 cubm
Vienības aprēķinātais svars2.4 kg
