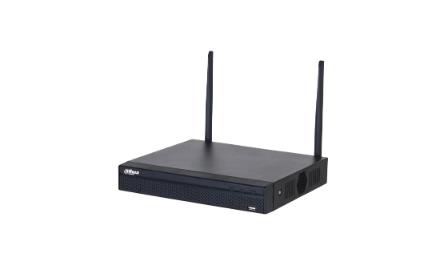

NET VIDEO RECORDER 4CH WIFI/NVR1104HS-W-S2-CE DAHUA

  • Produkta kods: NVR1104HS-W-S2-CE
  • EAN: 6923172542984
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

183.05

151.28 € (bez PVN 21%)

2

07.07.

Apraksts

With its embedded Wi-Fi module, Dahua\'s Lite Series Wireless Recorder supports the AP function, and automatically detects and connects with Dahua wireless cameras. It has two antennas that together produce strong wireless signals, and has IEEE 802.11 b/g/n (2.4G Hz) Wi-Fi which allows it to cover a wider area. This NVR also supports the access of IP cameras, making installation more convenient.Without the limitation of network cables, the wireless recorder combined with the Dahua
wireless camera provides a great solution for SMB surveillance systems, making this NVR ideal for a wide range of applications including home safety, cafes, supermarkets, retail, education and more industries.

New User Interface
Highly user friendly, the new web interface and GUI have a minimalist
flat design, that makes navigating the system much easier. The
functional modules have also been arranged to be clearer and easier to
understand.

Automatic Wireless Pairing
In just 120 seconds, the wireless NVR automatically pairs with the
wireless IPC after the system starts up, allowing you to work faster and
more efficiently.

Wireless Cascading
The wireless NVR automatically cascades IPCs for long-distance
surveillance.

  • New 4.0 user interface
  • One-click wireless pairing to IPCs
  • Automatic pairing to IPC in 120 s after boot-up under undisturbed conditions
  • Automatic cascading of IPCs for long-distance surveillance
  • 4–ch@1080P (25FPS), self-adaptive decoding capability
  • Supports mainstream cameras of ONVIF protocol
  • Smart H.265/Smart H.264
  • VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P
  • Remote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batches
  • DHCP (Dynamic Host Configuration Protocol), HTTP (Hypertext
  • TransferProtocol), NTP (Network Time Protocol) and DDNS (Dynamic DomainName System)

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryDahua Technology NVR1104HS-W-S2-CE. Video input channels: 4 channels, Video recording modes: 720p, 1080p, Operating system installed: Embedded LINUX. Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server;P2P. Rack capacity: 1U, LED indicators: HDD, Network, Power, Product colour: Black. Output current: 1.5 A, Output voltage: 12 V
Ražotājs datu lapahttps://www.dahuasecurity.com/products/
Vienība kastes augstums0.115
Vienība kastes garums0.37
Vienība kastes platums0.305
Audio kodekiPCM; G711A; G711U; G726
Rezerves kopija funkcijaYes
product_attr.INPUT_BANDWIDTH40 Mbit/s
Maksimālais kadra ātrums25 fps
Darbības sistēma installedEmbedded LINUX
product_attr.OUTPUT_BANDWIDTH20 Mbit/s
Ierakstīšana režīmiManual
product_attr.VIDEO_CODECSSmart H.265; H.265; Smart H.264; H.264; MJPEG
Video ievades kanāli4 channels
Video kustības noteikšanaYes
Video ierakstīšana režīmi1080p/720p
HDD interfeissSATA
Maksimālais glabāšana ietilpība16 TB
product_attr.NUMBER_OF_HDDS_INSTALLED1
product_attr.AUDIO_RCA_INPUTS1
product_attr.AUDIO_RCA_OUTPUTS1
Līdzstrāvas ligzdaYes
Ethernet LAN (RJ-45) pieslēgvietas1
Ethernet LAN datu pārraides ātrums10/100 Mbit/s
HDMI IzejaYes
HDMI portu skaits1
Atbalstīts tīkls protokoliHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server;P2P
USB 2.0 porti skaits2
VGA D Sub Izeja Porti1
SertifikācijaCE: EN62368-1; EN55032; EN55024; EN55035; EN61000- 3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B CE- RED: EN301489-1; EN 301489-17; EN300328; EN300328; EN62311; FCC ID: 47 CFR PART 15 SUBPART C
LED indikatoriHDD/Network/Power
Produkts krāsaBlack
Statīvs ietilpība1U
Statīva montāžaYes
Iebūvēts procesorsYes
Izejas strāva1.5 A
Izejas spriegums12 V
Pārlūkprogramma atbalstītsChrome; IE 9 or later; Firefox
Mobilais darbības sistēmas atbalstītsAndroid/iOS
Darbības relatīvs mitrums (H-H)10 - 93 %
Darbības temperatūra (T-T)-10 - 45 °C
Dziļums247.3 mm
Augstums44.7 mm
Iepakojums dziļums117 mm
Iepakojums augstums308 mm
Iepakojums svars1560 g
Iepakojums platums372 mm
Svars824 g
Platums260.3 mm
ModelisNVR1104HS-W-S2-CE
Modelis NosaukumsNVR1104HS-W-S2-CE
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.01298 cubm
Vienība Calculated svars1.6 kg
