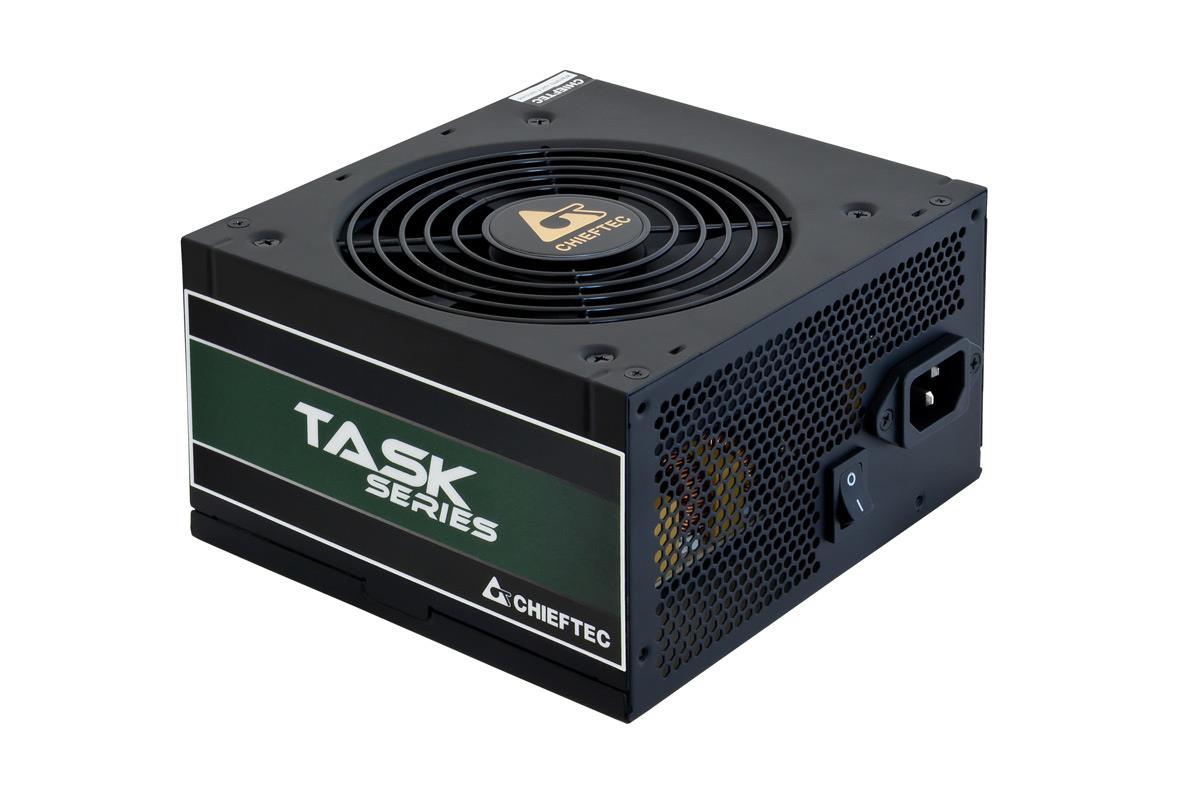

Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS BRONZE|PFC Active|TPS-700S

  • Produkta kods: TPS-700S
  • EAN: 753263076502
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

64.83 €

53.58 € (bez PVN 21%)

50

26.10.

Apraksts

TPS-700S

The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases./

TPS-700S

The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.

  • 80PLUS Bronze certified efficiency
  • 650mm long cables for maximum case compatibility
  • All modern protection and safety features included

Šim produktam ir 24 mēnešu garantija.

Parametri

KopsavilkumsChieftec Task TPS-700S. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: ErP, CE, CB, EAC, TUV
Ražotāja datu lapahttps://www.chieftec.eu/products-detail/180/TASK_SERIES/248/TPS-700S
Vienības kastes augstums0.185
Vienības kastes garums0.235
Vienības kastes platums0.105
Kopējā jauda700 W
product_attr.MAINSTRAVAS_IEVADES_SPRIEGUMS100 - 240 V
product_attr.MAINSTRAVAS_IEVADES_FREKVENCE47 - 63 Hz
Ieejas strāva10 A
product_attr.JAUDAS_KOEFICIENTS0.9
product_attr.STRAVAS_FAKTORA_KOREKCIJA_PFC_VEIDSAktīvs
product_attr.KOPEJA_STRAVA_12V648 W
product_attr.KOPEJA_STRAVA_12V3.6 W
product_attr.KOPEJA_STRAVA_5VSB12.5 W
product_attr.MAKSIMALA_IZVADES_STRAVA_33V19 A
product_attr.MAKSIMALA_IZVADES_STRAVA_12V54 A
product_attr.MAKSIMALA_IZVADES_STRAVA_5V17 A
product_attr.MAKSIMALA_IZVADES_STRAVA_12V0.3 A
product_attr.MAKSIMALA_IZVADES_STRAVA_5VSB2.5 A
product_attr.JAUDAS_AIZSARDZIBAS_APRAKSTSĪssavienojums/Pārkaršana/Pārslodze/Pārspriegums/Zem sprieguma
product_attr.MATESPLATES_STRAVAS_KONEKTORS20+4 pin ATX
product_attr.MATESPLATES_BAROSANAS_VADA_GARUMS650 mm
SATA strāvas savienotāju skaits6
product_attr.SATA_STRAVAS_KABELA_GARUMS150/500 mm
product_attr.PERIFERAS_MOLEX_STRAVAS_SAVIENOTAJI_4PIN3
product_attr.PERIFERALA_MOLEX_STRAVAS_KABELA_GARUMS150/500 mm
product_attr.EPS_BAROSANAS_KONEKTORS_44_KONTAKTIJā
product_attr.PCI_EXPRESS_STRAVAS_KONEKTORS_62_TAPU2
product_attr.PCI_EXPRESS_STRAVAS_KABELA_GARUMS500 mm
product_attr.ATX_BAROSANAS_SAVIENOTAJS_20_4_PINJā
product_attr.KABELU_TIPSNemodulārs
product_attr.80_PLUS_SERTIFIKACIJA80 PLUS Bronze
Atbalstāmie mātesplates formas faktoriATX
Mērķis / rezultātsPC (dators)
product_attr.STRAVAS_PADEVES_BLOKA_PSU_FORMAS_FAKTORSATX
Produkta krāsaMelns
Ventilatora diametrs120 mm
Ventilatoru skaits1 ventilators/ ventilatori
product_attr.ATBILSTIBAS_SERTIFIKATIRoHS
SertifikācijaErP, CE, CB, EAC, TUV
Platums150 mm
Dziļums140 mm
Augstums87 mm
Svars1740 g
Iepakojuma svars2150 g
Iepakojuma tipsKaste
product_attr.HARMONIZETAS_SISTEMAS_HS_KODS84733020
product_attr.EPS_KABELA_GARUMS650 mm
product_attr.VIENIBAS_APREKINATAIS_SVARS4.31 kg
product_attr.PRECES_NETO_SVARS1.57 kg
Vienības aprēķinātais tilpums0.006169 cubm
product_attr.VIENIBU_SKAITS_VIENA_SUTIJUMA_KASTE4
Kastes svars17.25 kg
product_attr.VIENIBAS_PLATUMS10.5 cm
product_attr.VIENIBU_SKAITS_UZ_PALETES0
Kastes augstums21 cm
product_attr.VIENIBAS_DZILUMS23.5 cm
Kastes dziļums50 cm
product_attr.VIENIBAS_AUGSTUMS18.5 cm
Kastes platums23.5 cm
NosaukumsCASE PSU ATX 700W/TPS-700S CHIEFTEC
