LTE Gateway: No WiFi, 4G, SIM, R485 port, Micro USB - LTE Gateway - TRB145 - No Wi-Fi - Ethernet LAN (RJ-45) ports 0 - Mesh Support No - MU-MiMO No - 2G/3G/4G - Antenna type 1 x SMA for LTE - 1 x Virtual network interface via micro USB

  • Produkta kods: TRB145003000
  • EAN: 4779027312415
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

137.21 €

113.40 € (bez PVN 21%)

5

01.05.

154.58 €

127.75 € (bez PVN 21%)

2

01.05.

Apraksts

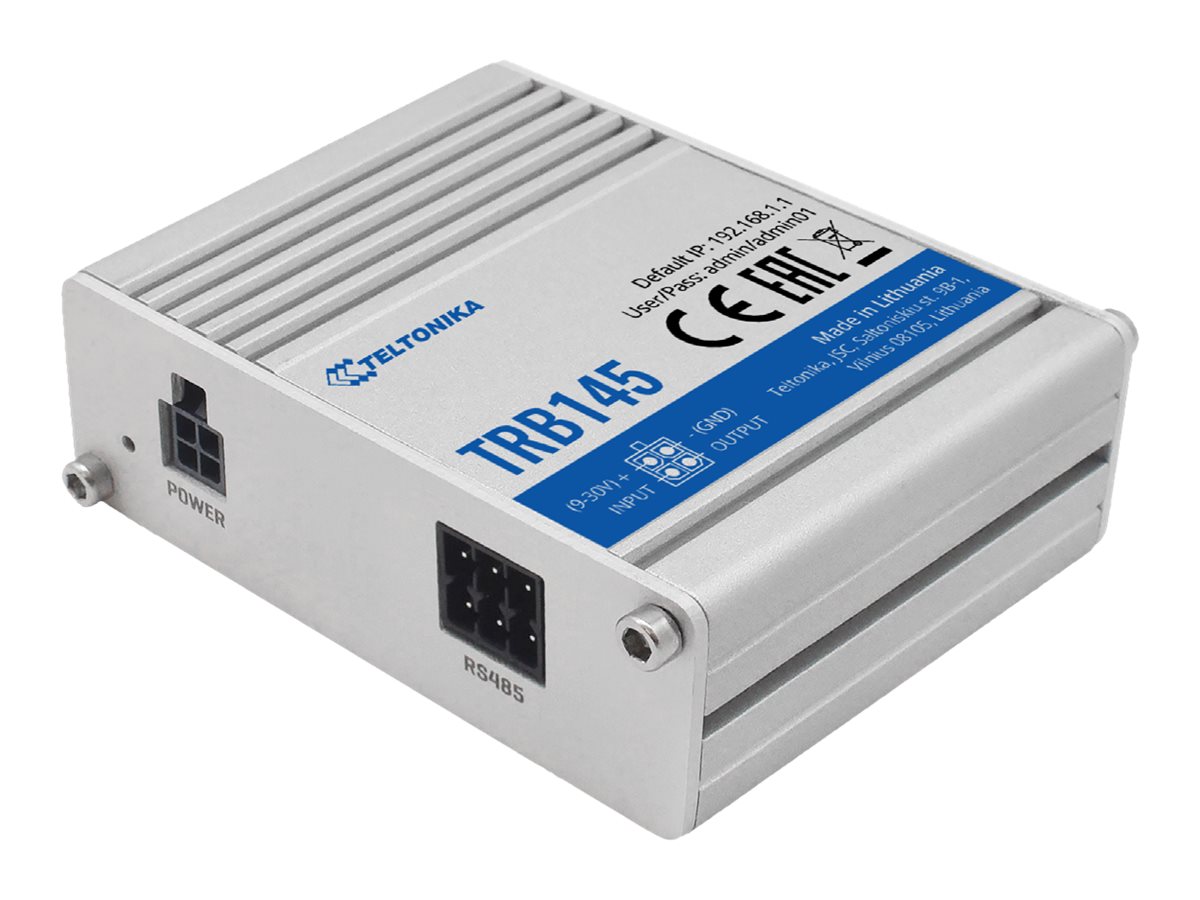

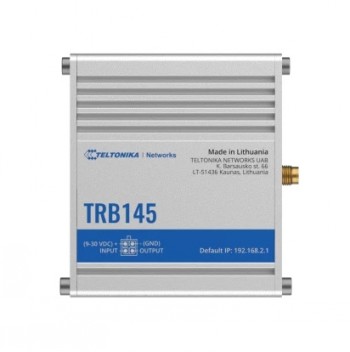

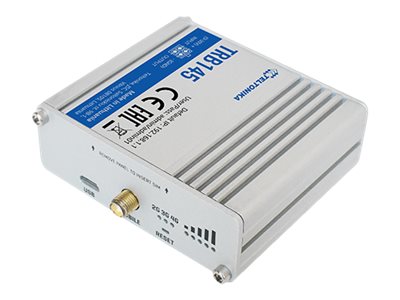

TRB145 INDUSTRIAL RUGGED LTE RS485 GATEWAY
TRB145 is a mission-critical LTE Cat 1 gateway, equipped with RS485 interface.

Compact design and easy installation make this gateway perfect for applications, where a sole gadget must be remotely controlled over the RS485 serial interface.

Just like the rest of TRB products, TRB145 is engineered to be used in industrial applications. Therefore, it has a wide range of software features, such as SMS control, Firewall, Open VPN, IPsec, Teltonika Networks Remote Management System (RMS), and FOTA support.

Šim produktam ir 2 mēnešu garantija.

Parametri

Bruto dziļums MM170 mm
Bruto augstums MM150 mm
Bruto svars0.388 kg
Bruto platums MM70.00 mm
Net Svars0.277 kg
Packing daudzums1.00 pcs
Papīra Pasteboard111 g
Tare svars KG0.111 kg
Tilpums M30.001785 m³
Embeed akumulatoraNo
EEIA nodoklisCL109:6:2017-04-01
USB Portu Skaits1 x Virtual network interface via micro USB
Antenas Tips1 x SMA for LTE
Producer produkts nosaukumsTRB145
Producer produkts saimeLTE Gateway
Ethernet lan rj 45 pieslēgvietu skaits0
WI FI JoslaNo Wi-Fi
Programmatūras tipsRutOS (OpenWrt based Linux OS)
Mesh atbalstsNo
Mobilais Broadband2G/3G/4G
MU-MIMONo
Antenu Daudzums1
Apvalka materiālsAluminum
Dimensijas (WxDxH)74,5x64,4x25 mm
Darbības relatīvā mitruma amplitūda10 % to 90 % non-condensing %
Darbības temperatūras amplitūda t t-40 °C to 75 °C °C
Atbalstāmie tīkla protokoliTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, SSH, DHCP, SNMP, MQTT
Ugusmūra drošībaPre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
Atbalstāmie protokoli HTTP(S), MQTT, Azure MQTT, Kinesis
Operatīvā atmiņa128 MB (50 MB available for userspace) GB
ProcesorsARM Cortex-A7 1.2 GHz CPU
Spriegums9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max V
LED indikatori3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED
RažotājsTeltonika
Paletes daudzums968 pcs
Garantija24 mēnesis(i)
