NET VIDEO RECORDER 4CH POE+/VIGI NVR1004H-4P TP-LINK

  • Produkta kods: VIGINVR1004H-4P
  • EAN: 4897098688748
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

167.26

138.23 € (bez PVN 21%)

1

07.07.

Apraksts

Security Never Shuts Down

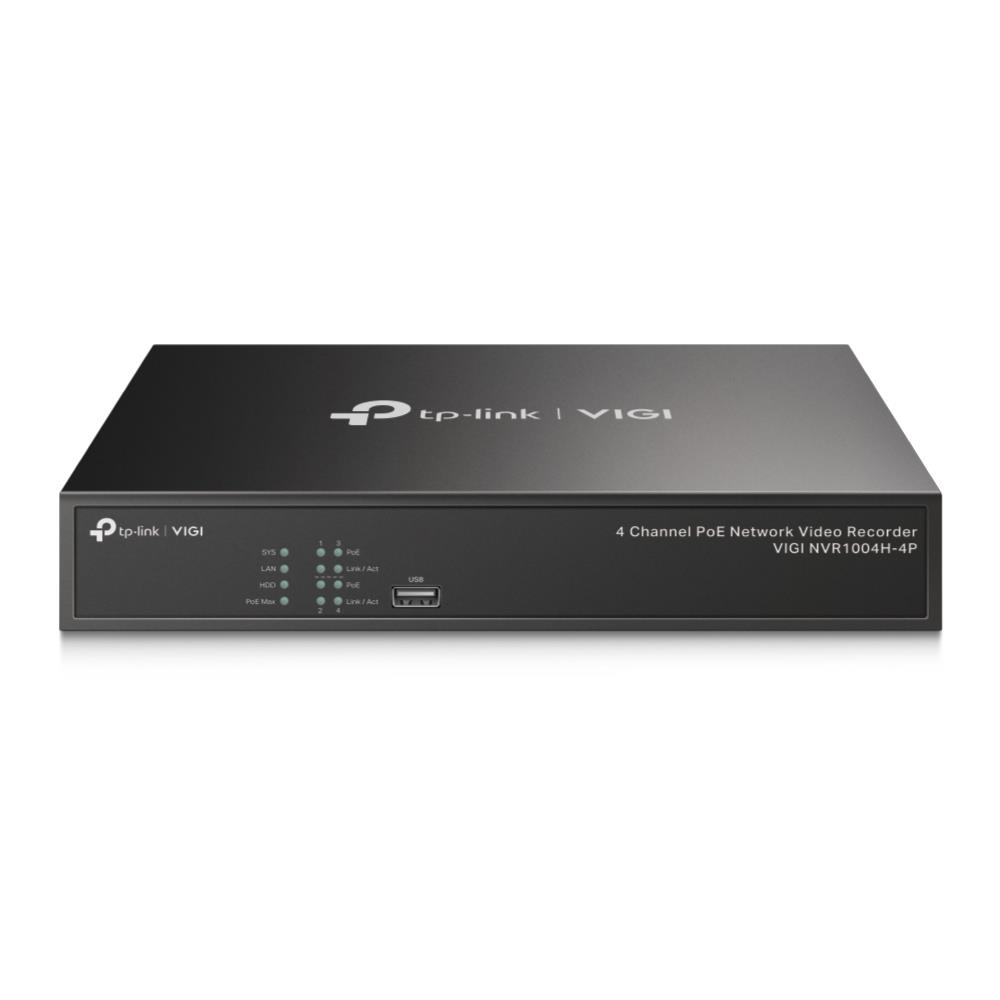

VIGI NVR1004H-4P 4 Channel PoE Network Video Recorder

Every angle all on one screen.
4K HDMI Video Output & 16MP Decoding Capacity

Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.

Dedicated 4 PoE+ ports (53 W budget) for simplified IP camera deployment .
Features 4× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.

Reviewing footage is faster than ever.
4-Channel Simultaneous Playback

Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

No need to check long compatibility lists.
ONVIF Ensures Compatibility

Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

Plug & Play.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.

Security for every hour and every day.
24/7 Continuous Recording

Stores up to 10 TB of footage from managed cameras to secure your data for quick, convenient access.

Keep an eye on things even when you are on the move.
Remote Monitoring

The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.

Greet your visitors before they enter.
Two-Way Audio

With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

Higher bandwidth for high-definition cameras.
80 Mbps Video Access Bandwidth

High video access bandwidth ensures your NVR manages cameras with high resolutions. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four HD cameras.

One system. Full security.
Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

  • 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle†
  • Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed
  • 4-Channel Simultaneous Playback: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage
  • H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
  • ONVIF Ensures Compatibility: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility
  • Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before
  • 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access
  • Remote Monitoring: The dedicated VIGI app and VIGI Security Manager enable remote monitoring, providing ease and convenience
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management
  • 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four 4MP cameras

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryTP-Link VIGI 4 Channel PoE+ Network Video Recorder. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 1080p, 2160p. Maximum storage capacity: 10 TB, HDD interface: SATA. Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP. Product colour: Black. Power consumption (typical): 4.25 W, Output current: 1.31 A, Output voltage: 53.5 V
Ražotājs datu lapahttps://www.tp-link.com/uk/business-networking/vigi-network-video-recorder/vigi-nvr1004h-4p/
Vienība kastes augstums0.065
Vienība kastes garums0.37
Vienība kastes platums0.285
Trauksmes ievades kanāli4
Trauksmes izejas kanāli1
product_attr.INPUT_BANDWIDTH80 Mbit/s
Maksimālais izšķirtspēja3840 x 2160 pixels
product_attr.OUTPUT_BANDWIDTH60 Mbit/s
Izšķirtspēja At uzņemšanas ātrums1280x720@60fps/1920x1080@60fps/3840x2160@30fps
Atbalstīts Resolutions3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
Video formāti atbalstītsH.264/H.264+/H.265/H.265+
Video ievades kanāli4 channels
Video ierakstīšana režīmi1080p/2160p/720p
Wi-FiNo
Cietā diska ietilpība.0 GB
HDD interfeissSATA
Maksimālais glabāšana ietilpība10 TB
product_attr.AUDIO_RCA_INPUTS1
product_attr.AUDIO_RCA_OUTPUTS1
Ethernet LAN (RJ-45) pieslēgvietas1
HDMI IzejaYes
HDMI portu skaits1
Atbalstīts tīkls protokoliTCP/IP, DHCP, DNS, NTP, UPnP
USB 2.0 porti skaits2
VGA D Sub Izeja Porti1
LED indikatoriYes
Produkts krāsaBlack
Izejas strāva1.31 A
Izejas spriegums53.5 V
Barošanas consumption (typical)4.25 W
Kopējais barošanas pāri Ethernet POE Budget53 W
Darbības temperatūra (T-T)-10 - 55 °C
Dziļums148.2 mm
Augstums45 mm
Platums246.2 mm
ModelisVIGI NVR1004H-4P
Modelis NosaukumsVIGI 4 Channel PoE+ Network Video Recorder
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.006854 cubm
Vienība Calculated svars1.5 kg
