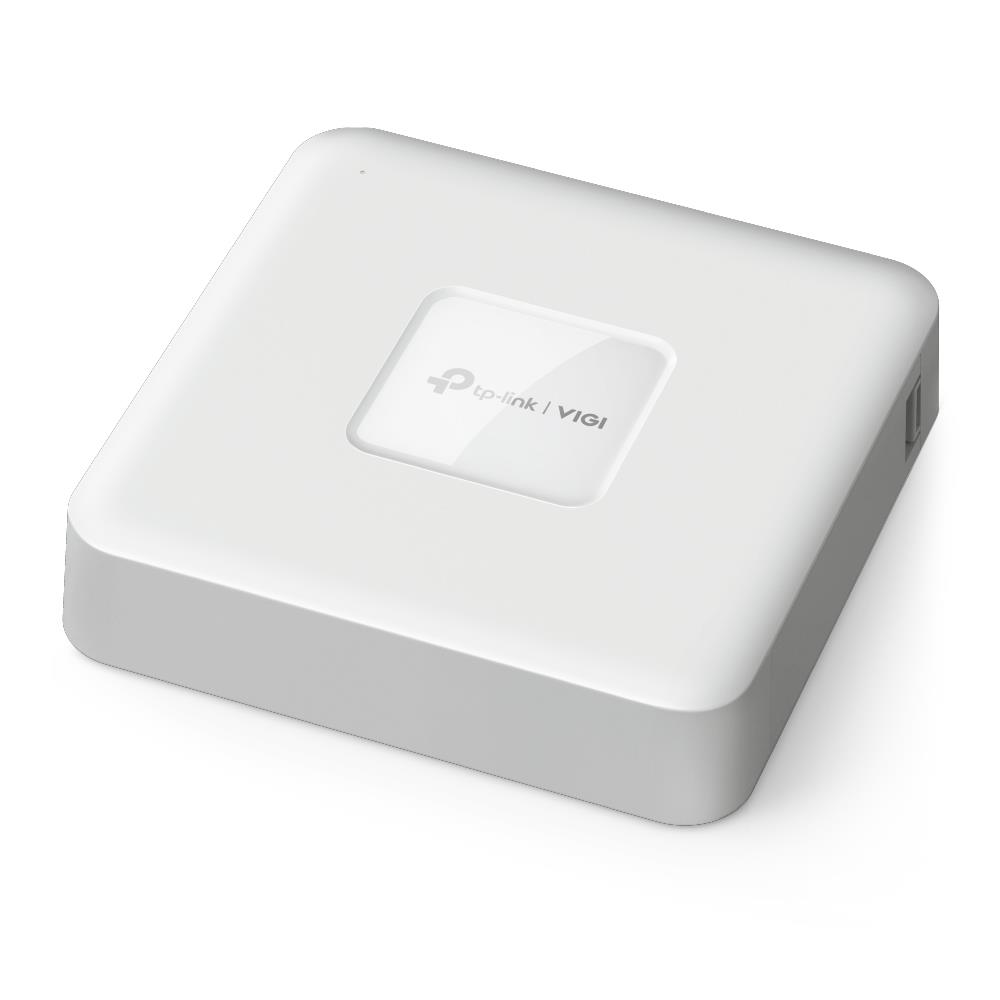

NET VIDEO RECORDER 4CH/VIGI NVR1104H-4P TP-LINK

  • Produkta kods: VIGINVR1104H-4P
  • EAN: 4897098688786
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

167.26

138.23 € (bez PVN 21%)

1

07.07.

Apraksts

Every angle all on one screen

4K HDMI Video Output & 16MP Decoding Capacity

Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.

Dedicated 4 PoE+ ports (53 W budget) for simplified IP camera deployment.

Features 4× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.

Reviewing footage is faster than ever
4-Channel Simultaneous Playback

Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

More compression. More savings. Same quality

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

  • 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle‡
  • Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed
  • Simple HDD Installation†: Install and remove the HDD manually with easy side access
  • 4-Channel Simultaneous Playback△ : Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage
  • H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
  • ONVIF Ensures Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility
  • Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before
  • 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access
  • Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience
  • Built-In Speaker: Enjoy real-time audio output without needing peripherals for greater convenience
  • Flexible Installation: Choose the suitable installation method by simply mounting your NVR on the wall, or placing it on or under a desk

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryTP-Link VIGI NVR1104H-4P. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 4 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: White. Power consumption (typical): 4.82 W, Output current: 1.31 A, Output voltage: 53.5 V
Ražotājs datu lapahttps://www.tp-link.com/en/business-networking/vigi-network-video-recorder/vigi-nvr1104h-4p/
Vienība kastes augstums0.25
Vienība kastes garums0.4
Vienība kastes platums0.06
DHCP klientaYes
product_attr.INPUT_BANDWIDTH80 Mbit/s
Maksimālais izšķirtspēja3840 x 2160 pixels
product_attr.NUMBER_OF_SIMULTANEOUSLY_PLAYBACKED_CHANNELS4 channels
Ieslēgts ekrāna displejs (OSD)Yes
product_attr.OUTPUT_BANDWIDTH60 Mbit/s
Atbalstīts ResolutionsHDMI^ 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz VGA: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz
SyslogYes
Video formāti atbalstītsH.264/H.264+/H.265/H.265+
Video ievades kanāli4 channels
Video ierakstīšana režīmi1080p/720p
Wi-FiNo
HDD interfeissSATA
Maksimālais glabāšana ietilpība10 TB
Numurs of HDDs atbalstīts1
Audio izvade1
Vara Ethernet kabeļu sistēma tehnoloģija1000BASE-T/100BASE-TX/10BASE-T
Ethernet LAN (RJ-45) pieslēgvietas5
Ethernet LAN datu pārraides ātrums10/100 Mbit/s
product_attr.ETHERNET_WANYes
HDMI IzejaYes
HDMI portu skaits1
Ievades līnijaYes
Tīklošana standartiIEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u
Barošanas pāri Ethernet POEYes
Barošanas pāri Ethernet POE porti daudzums4
Atbalstīts tīkls protokoliTCP/IP, DHCP, DNS, NTP, UPnP
USB 2.0 porti skaits2
VGA D Sub Izeja Porti1
LED indikatoriYes
Produkts krāsaWhite
Statīva montāžaNo
Iebūvēts displejsNo
Izejas strāva1.31 A
Izejas spriegums53.5 V
Barošanas consumption (typical)4.82 W
Redundant barošanas barošana Rps atbalstsYes
Kopējais barošanas pāri Ethernet POE Budget53 W
Darbības temperatūra (T-T)-10 - 55 °C
Atbilstības sertifikātiCE/EAC/Federal Communications Commission (FCC)
Sustainability complianceYes
Dziļums200.3 mm
Augstums43 mm
Iepakojums dziļums401.5 mm
Iepakojums augstums64.5 mm
Iepakojums svars1370 g
Iepakojums platums251.5 mm
Platums200.3 mm
Komplektā iekļauts maiņstrāvas adapterYes
Ātrā uzstādīšana guideYes
ModelisVIGI NVR1104H-4P
Modelis NosaukumsNVR1104H-4P
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.006 cubm
Vienība Calculated svars1.42 kg
