HDCVI Cameras

The Lite Series is a great choice for consumers looking for high qualitymonitoring products at a reasonable price. Its low cost and highperformance make it ideal for residential areas and SMB solutions. Thisseries is equipped with a wide range of technologies, such as full-colorand starlight, providing various solutions for different scenarios.Smart Dual LightWith its smart dual light mechanism, the camera automatically turns onthe white light when Perimeter Protection/SMD Plus function of AI XVRdetects a target in the rule area to capture clear, vivid images. When thetarget leaves the rule area, the camera automatically switches over fromthe white light to the IR light to significantly reduce light pollution.Broadcast-quality AudioAudio signal transmission over coaxial cables is supported by the HDCVIcamera. It adopts a unique audio processing and transmissiontechnology that restores source audio and eliminates noise, ensuringthe quality and reliability of the audio information that is collected. Thisbecomes important for video surveillance applications that use audioinformation as a type of supplementary evidence.Super AdaptWith its intelligent algorithm, the camera automatically adjusts itsparameters to provide optimal performance and vivid images.Advanced 3DNRDahua’s advanced 3DNR technology reduces image noise with little tono impact on image sharpness, especially in poor lighting conditions.It detects the noise, and compares the sequential frames to effectivelyreduce the noise. It also makes efficient use of bandwidth, saving onstorage space. Protection (IP67, Wide Voltage)IP67: The camera passed a series of rigorous dust and immersion tests.Its enclosure is both dust-proof and waterproof, and can functionnormally while being immersed in 1 m deep water for up to 30 minutes.Wide voltage: The camera has ±30% input voltage tolerance (for somepower supplies) and a wide voltage range, making it suitable for a varietyof outdoor scenarios.4 Signals over 1 Coaxial CableHDCVI technology supports 4 signals (video, audio*, data and power)which are simultaneously transmitted over a coaxial cable. Dual-waydata transmission allows the HDCVI camera to interact with the XVR toperform various actions such as sending control signals and triggeringalarms. HDCVI technology also supports PoC, which makes the cameraeasy and quick to install.* Audio input is available for select HDCVI camera models.Long Distance TransmissionHDCVI technology provides long distance transmission in real timewithout transmission loss. It supports transmission distances up to 700m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300m through UTP cables. The results were obtained and verified throughrigorous testing in Dahua\'s test laboratory.Max. 30 fps@1080p3D NRSmart Dual Light40 m illumination distanceSuper AdaptBuilt-in mic3.6 mm fixed lens (2.8 mm optional)CVI/CVBS/AHD/TVI switchableIP67, 12 VDC

Kods: HAC-HDW1200T-IL-A-0280B-S6

HDCVI Cameras

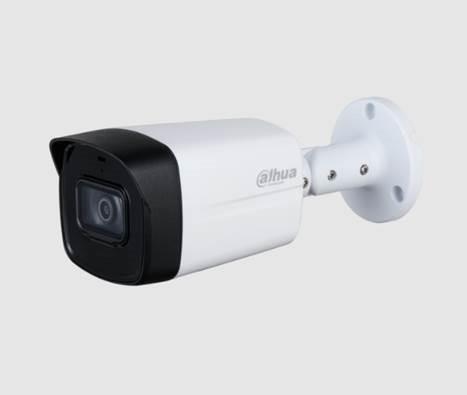

> Max. 25 fps@5MP (16:9 video output) > Starlight, 3D NR > 60 m illumination distance. > Built-in Mic. > 2.8 mm fixed lens. > CVI/CVBS/AHD/TVI switchable. > IP67, 12 VDC. > Field of View: 113.3°

Kods: HFW1500TLM-IL-A-0280BS3DIP

HDCVI Cameras

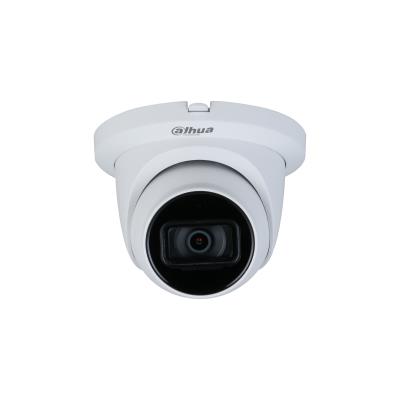

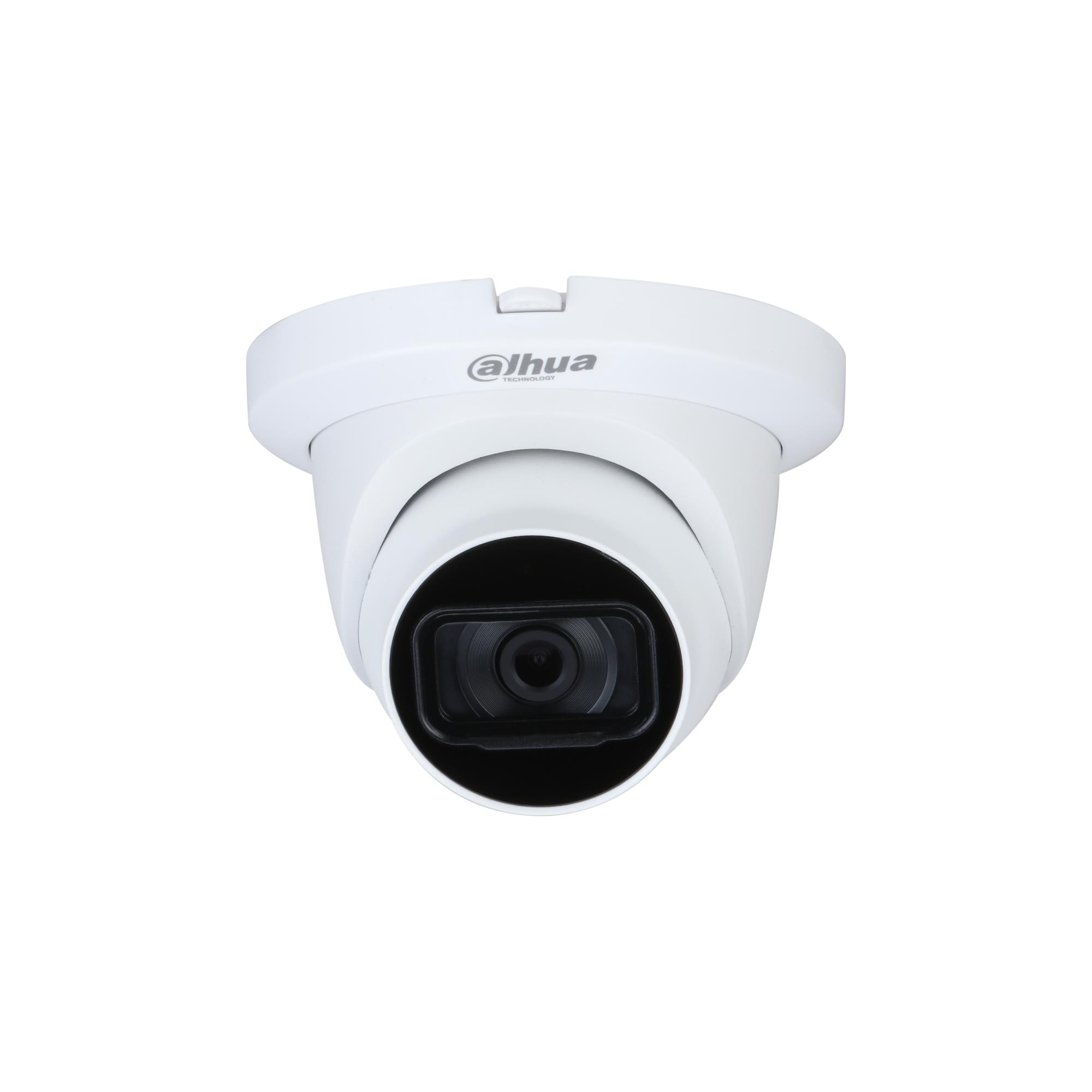

Max 30 fps@1080pStarlight, 130 dB true WDR, 3D NR3.6 mm fixed lens (2.8 mm, 6 mm optional)CVI/CVBS/AHD/TVI switchableSuper AdaptBuilt-in micMax. IR length 60 m, Smart IRIP67, DC 12 VQuick-to-install saves installation time

Kods: HAC-HDW1231TMQ-A-0280B

HDCVI Cameras

The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as fullcolor and starlight, providing various solutions for different scenarios.Smart Dual LightWith its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution.Smart Light+Equipped with advanced LEDs and beam processing technology, the camera effectively reduces interference of stray light, ensuring concentrated illumination within the lens\'s field of view. This allows the camera to easily produce clear images that reveal the fine details of targets even in low light conditions.Smart Area LightingAutomatically adjusts the intensity of the brightness and exposure for the left and right areas in the video based on the proportion and position of the targets to reveal more details in the image.Broadcast-quality AudioAudio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence.Super AdaptWith its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.Advanced 3DNRDahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects the noise, and compares the sequential frames to effectively reduce the noise. It also makes efficient use of bandwidth, saving on storage space.> * The parameters and datasheets below can only be applied to 1801-IL-S3 seriesIn order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later versionIn order to use the TVI Audio, the firmware of HDCVI camera must be upgraded to V1.001.0000002.0.R.20251204 or later versionMax. 15 fps@4KSmart Dual Light80 m illumination distanceSuper AdaptBuilt-in Mic3.6 mm fixed lens (2.8 mm, 6 mm optional)CVI/CVBS/AHD/TVI switchableIP67, 12 VDC

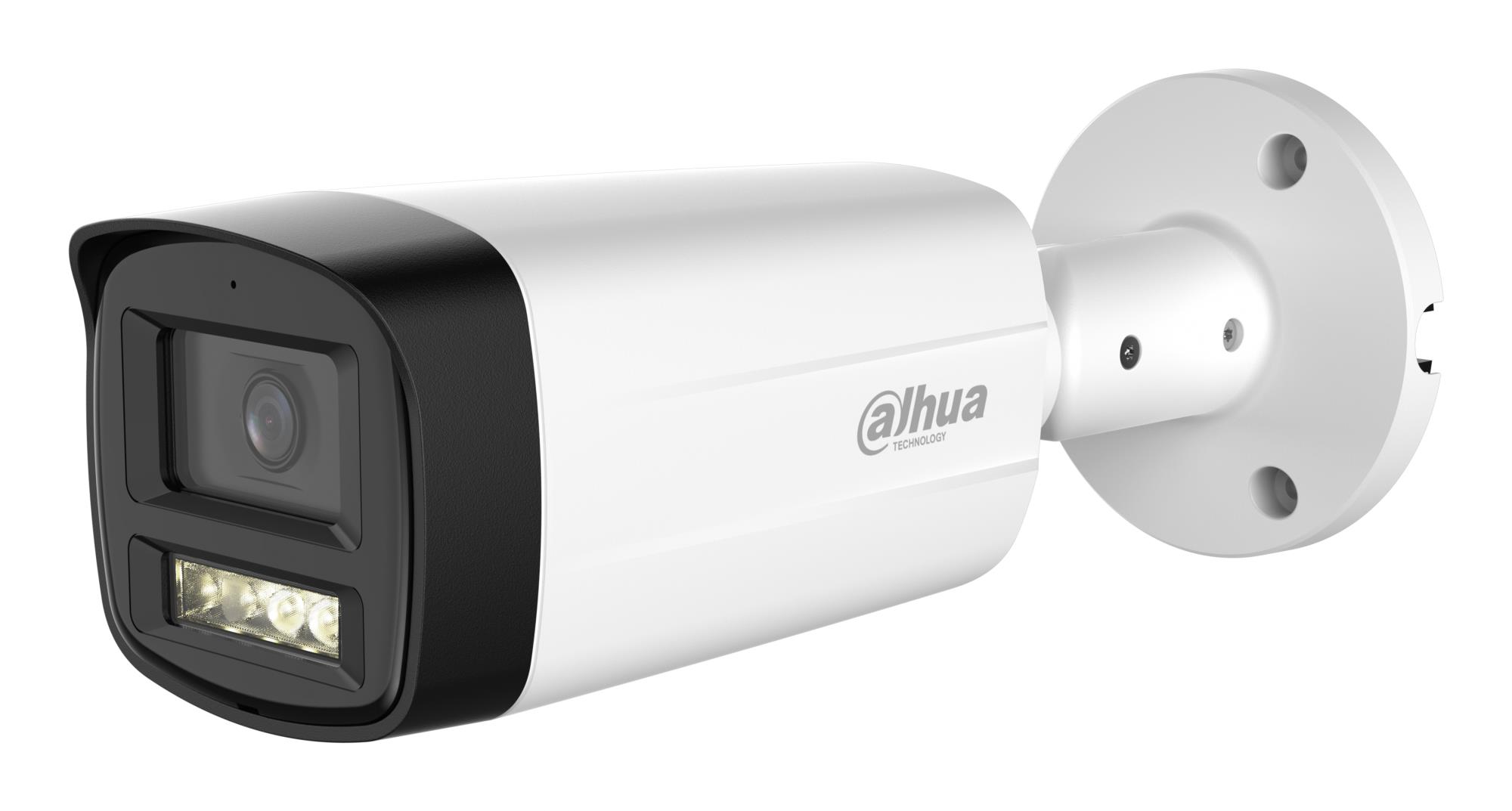

Kods: HFW1801TH-IL-A-0360B-S3DIP

HDCVI Cameras

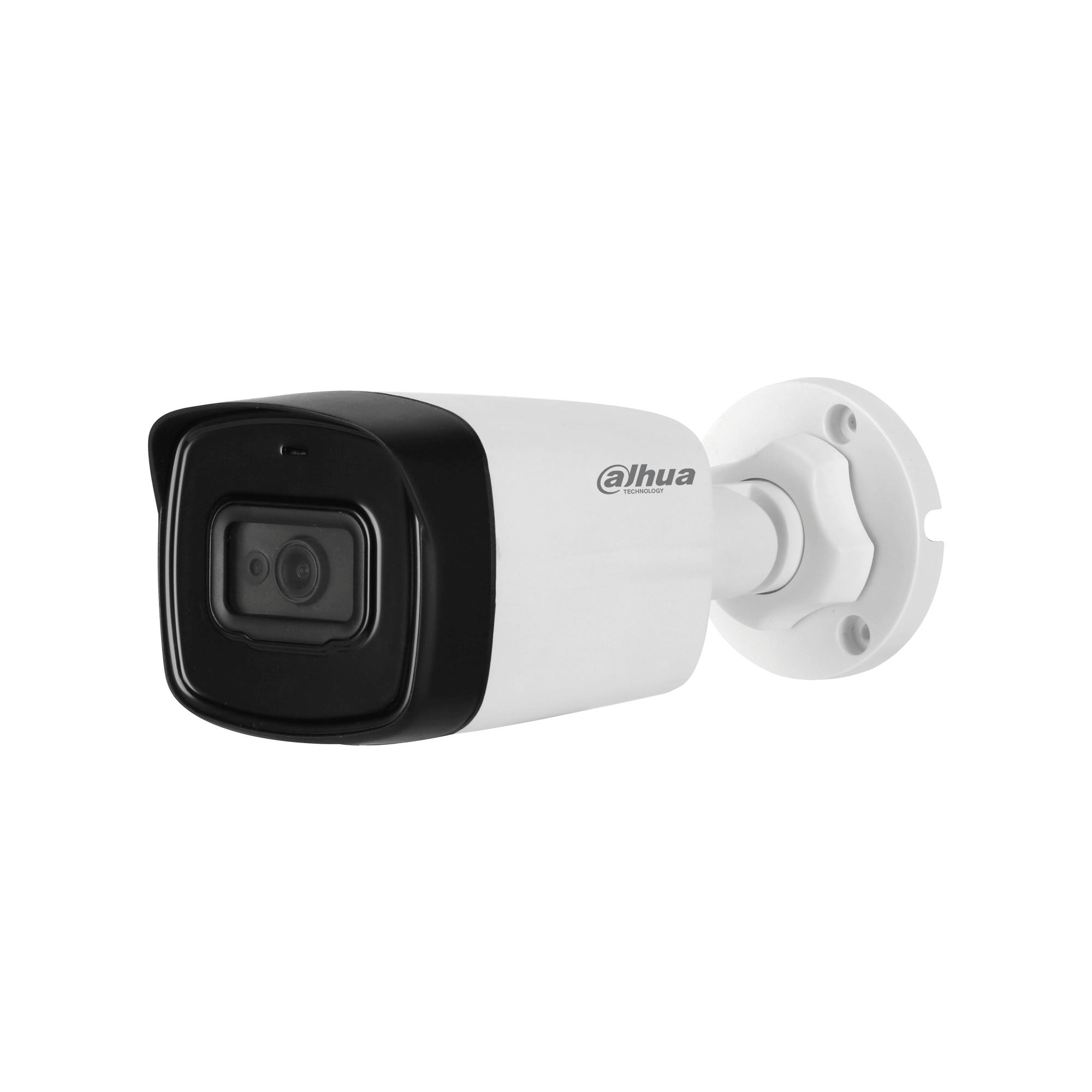

Experience 4K video surveillance with the simplicity of reusing existing coaxial infrastructure. The 4K HDCVI camera adopts a powerful Dahua ISP and advanced 1/2.7" CMOS sensor, which provides superior high quality images. In addition, the camera features broadcastquality audio to provide enhanced supplementary evidence collection. Ultra-high definition and a complete set of features makes the 4K HDCVI camera an ideal choice for mid to large-size businesses and projects where bothhighly reliable surveillance and construction flexibility are demanded. Max. 4K resolution, real-time video transmissionCVI/CVBS/AHD/TVI switchableBuilt-in mic (-A)Fixed lens (2.8mm; 3.6mm;6mm optional)Max. IR length 80m, Smart IRIP67, 12V±30%DC

Kods: HAC-HFW1800TL-A-0360B

HDCVI Cameras

5MP WizColor HDCVI Fixed-focal Eyeball Camera > * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version. > 24/7 color imaging, Max. 25 fps@5MP (16:9 video output) > AI-ISP. > Distortion Correction. > Smart Light+. > 50 m illumination distance > Super Adapt,130 dB true WDR, 3D NR > Built-in Dual Mic > Quick-to-install eyeball saves installation time. > 3.6 mm fixed lens (2.8 mm optional) > CVI/CVBS/AHD/TVI switchable > IP67, 12 VDC > 2.8 mm (109.6°)

Kods: HDW1549X-A-PRO-0280BDIP

HDCVI Cameras

5MP WizColor HDCVI Fixed-focal Bullet Camera > * In order to use the 5MP 16:9 and the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version. > Max. 25 fps@5MP (16:9 video output) > AI-ISP. > Distortion Correction. > Smart Dual Light. > Smart Light+. > 50 m illumination distance > Super Adapt,130 dB true WDR, 3D NR > Built-in Dual Mic > Quick-to-install eyeball saves installation time. > 3.6 mm fixed lens (2.8 mm optional) > CVI/CVBS/AHD/TVI switchable > IP67, 12 VDC > 2.8 mm (111°)

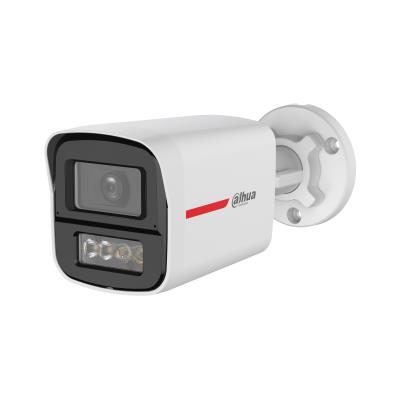

Kods: HFW1549X-ILAPRO0280BDIP

HDCVI Cameras

High-Quality Imaging with 5MP 16:9 Resolution Smart Dual Light: Built-in IR and LED Lights with 3 Illumination Modes Supported WizColor Technology: Exceptional Image Quality in Low-Light Conditions Built-In Dual Mic : Enhances Video Assistance with Dual Mic Technology Smart Light+ : Clear Details with Advanced LED Processing Technology 3DNR & DWDR & Super Adapt Ensures Clear Details in Strong Backlight Conditions Effortless Signal Selection with DIP Switch Time-saving Installation with Quick-to-install Structure IP67 Ratings for Protection Against Harsh Environments

Kods: HAC-HDW1549X-IL-A-PRO-0280B-DIP

HDCVI Cameras

5MP Smart Dual Illuminators Bullet Camera > Max 25 fps@5MP (16:9 video output). > 120 dB true WDR, 3D NR. > Smart Dual Illuminators. > 40 m illumination distance. > Super Adapt. > Built-in MIC. > 3.6 mm fixed lens (89°). > CVI/CVBS/AHD/TVI switchable. > IP67, 12 VDC.

Kods: HFW1509TLM-IL-A-0360B-S2

HDCVI Cameras

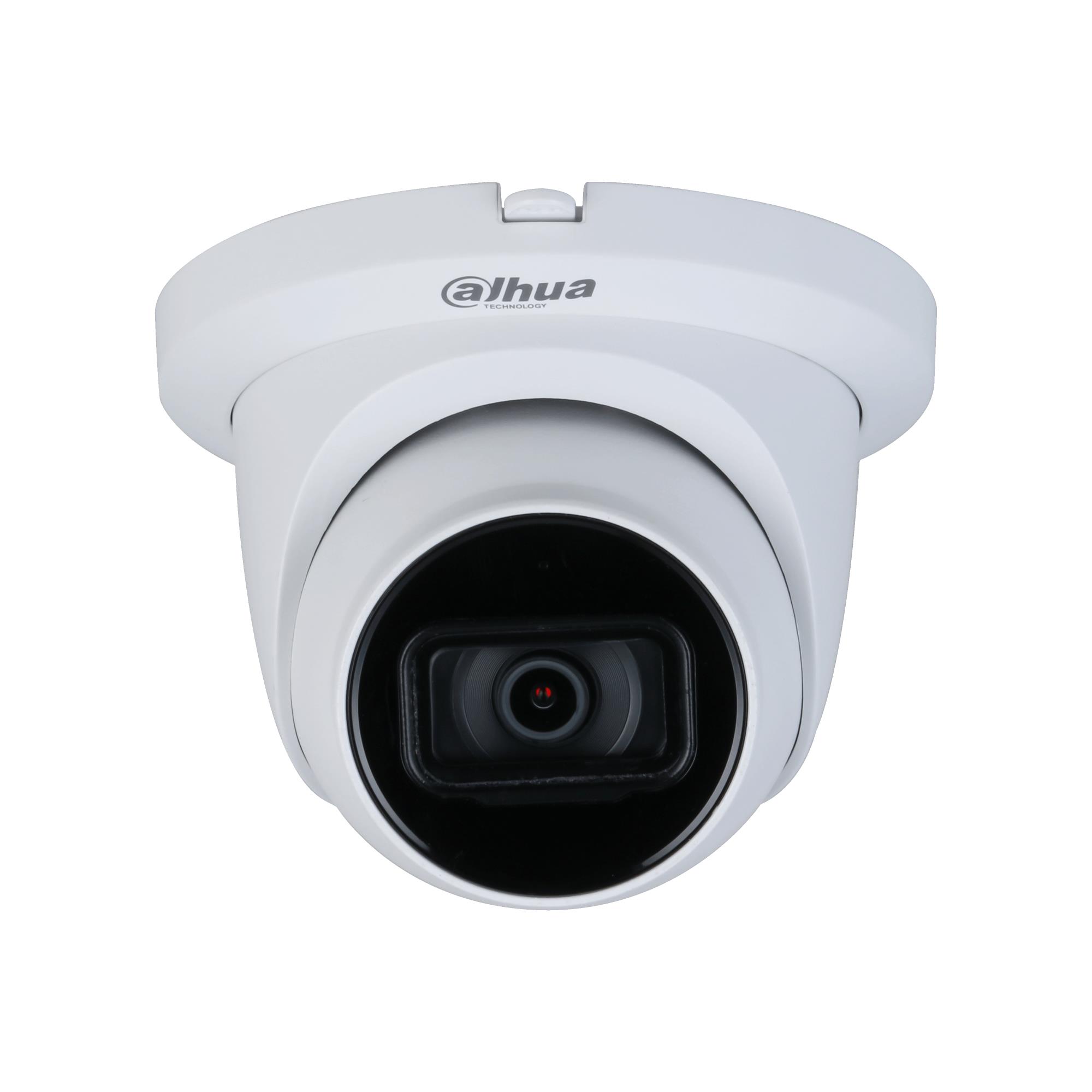

System Overview Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Pro series 5MP HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with 120 dB true WDR and a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions. Functions 4 Signals over 1 Coaxial Cable HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility. Easy Installation HDCVI Quick-to-install eyeball adopts quick-to-install pedestal, which can achieve easier installation than conventional eyeball. Quick-to-install camera reduces time and labor costs. Long Distance Transmission HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700 m for 5MP HD video via coaxial cable, and up to 300 m via UTP cable. Simplicity HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network. Starlight With the adoption of large sized high performance sensor, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination. Broadcast-quality Audio Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information. Smart IR The camera is designed with IR LED illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera. Wide Dynamic Range Embedded with industry leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. Advanced 3DNR 3DNR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3DNR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3DNR effectively decreases the band width and saves Max 25 fps@5MP (16:9 video output) Starlight, 120 dB true WDR, 3D NR CVI/CVBS/AHD/TVI switchable Quick-to-install eyeball saves installation time Built-in mic Max. IR length 60 m, Smart IR IP67, DC12V±30% 2.8 mm fixed lens

Kods: DH-HAC-HDW2501TMQ-A-0280B-S2

HDCVI Cameras

Lite Series is suitable for users who requires high quality monitoring products at areasonable price. It is cost effective and offers high performance, which makes it an ideal choice for residential and small-medium business applications. This series offers an option of a wide range of technologies such as Full-color and Starlight, providing various solutions for different scenarios.StarlightWith the adoption of large sized high performance sensor and large aperture lens, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.Broadcast-quality AudioAudio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.* Audio input is available for some models of HDCVI cameras.Wide Dynamic RangeWith advanced Wide Dynamic Range (WDR) technology, Dahua HDCVI camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.Super AdaptEmbedded with intelligent algorithm, for changing external environment, camera can automatically adjust parameters to present the optimal image, and it solves the trouble of configuration.Advanced 3D NR3D NR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua\'s advanced 3D NR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3D NR effectively decreases the band width and saves the storage space.Smart IlluminationThe camera is designed with IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua\'s unique Smart IR adjusts to the intensity of camera\'s infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera.Protection (IP67, wide voltage)IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 mins.Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.Max. 30 fps@1080PStarlight, 130dB true WDR, 3D NRAuto focus, 2.7 mm–12 mm motorized lensCVI/CVBS/AHD/TVI switchableSuper AdaptBuilt-in micMax. IR length 80 m, Smart IRIP67, 12V DC

Kods: HAC-HFW1231R-Z-A-2712

HDCVI Cameras

> Max. 15 fps@4K. > Smart Dual Light. > 40 m illumination distance. > Super Adapt. > Built-in Mic. > 3.6 mm fixed lens. > CVI/CVBS/AHD/TVI switchable. > IP67, 12 VDC. > Field of View: 86.8°

Kods: HFW1801TLM-IL-A-0360B-S2
